Lesson 5: How to Prototype a Camera Interaction

Create simple but realistic camera interactions using ProtoPie's 'native sensor' support features.

Jeff Clarke
Jeff Clarke, UX Designer & ProtoPie EducatorLast updated on August 16, 2023
camera interaction for prototypes thumbnail

You want to create believable camera interactions? In this tutorial, we'll show you how to prototype them in just a few clicks!

Take a look at the demo video to see what incredible prototypes you can create using camera interactions.

Camera interaction demo

Got inspired? Follow along with the tutorial below to get started prototyping your own camera interactions.

Overview

What you'll need

If you aren't using ProtoPie yet, then go ahead and download ProtoPie Studio for free.

Next, download the Pie file below to create this prototype by yourself.

You'll also need your phone handy, as we'll preview our interactions on the actual device itself. If you haven't already, make sure you've got the ProtoPie Player app installed which allows you to preview and test your prototypes directly on the device:

What you'll learn

At the end of this tutorial, you'll know how to:

  • Create a camera layer
  • Start the camera
  • Create interactions with features such as taking a picture and switching between the front and rear cameras using the Camera Response
  • Previewing the interaction on your phone
  • Animate the experience to improve feedback and feel

Time to complete: ≤15 minutes

How to prototype a camera interaction

Step 1: Create the camera layer

Let's get started! First, open the starting Pie file you downloaded above in ProtoPie Studio:

camera app prototype

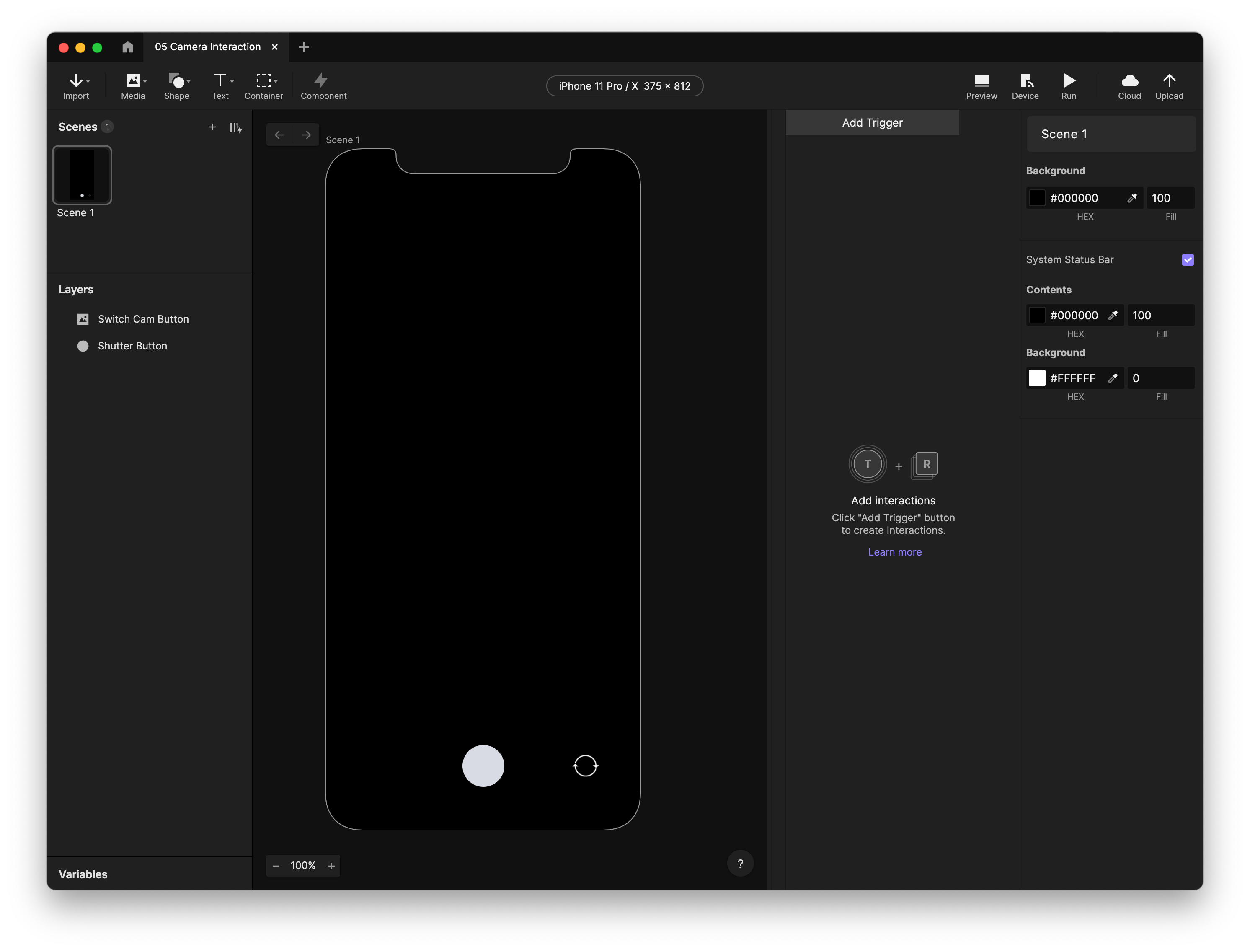

The beginnings of a camera app interface is already created for you.

Let's create a new Camera layer.

  • Under the Media menu, choose Camera.
  • Your mouse cursor will change to a crosshair icon. Draw your Camera layer in your scene.
  • If you haven't done so already, resize the Camera layer to fill the entire screen.
resize layer
You can drag the control points to do this, or you can enter values in the property panel.
  • We want our UI components — the Shutter Button and the Switch Cam Button — on top of the camera layer.
layer panel
Drag the Camera layer to the bottom of the stack.

Step 2: Start the camera

We'd like our camera to start when the scene starts. ProtoPie makes this easy:

  • In the property inspector, tick the box beside Auto Start.
  • You can choose which camera to use. Select Rear.
auto start

Step 3: Preview!

This doesn't much look like what your camera sees, does it? In order to see the camera's picture, we need to preview our Pie directly on our device.

preview
If you click the Preview button in Studio, you'll see this.

This is where the ProtoPie Player app comes in! It is a powerful and free app that will allow you or anyone you share your Pie with to run your prototype on a phone or tablet as if it were a native mobile experience.

Plus, it's the only way to make use of the built-in device sensors such as your phone's camera. If you haven't done so already, use the links above in the What you'll need section to install the app on your device.

  • In Studio, click Device in the top-right set of icons. This will reveal a QR code. Leave this visible, as we're going to need it in a moment.
device qr code
  • Start the ProtoPie Player app on your device. You'll be greeted with this screen:
protopie player
Tap Scan QR Code.
  • Scan the QR code you revealed above. Your Pie should now be running on your phone, and your scene should be filled with the rear camera's image.

💡 NOTE: For this to work your phone needs to either be on the same WiFi as the computer running Studio, or your device needs to be connected to the computer running Studio with a USB cable. If your Pie won't start on your device, double check that your phone is connected in one of these two ways.

Step 4: Add the interaction

Now that you know how to preview your Pie on your device, let's hook up the Switch Cam and Shutter Buttons.

  • Add a Tap Trigger.
  • Select the Switch Cam Button Layer.
switch cam layer
  • Add a Camera Response.
  • Select the Camera 1 Layer
camera1 layer
  • In the properties panel, choose Switch from the Camera selection drop down.
switch layer
  • Add another Tap Trigger.
  • Select the Shutter Button Layer.
shutter button
  • Add a Camera Response.
  • Select the Camera 1 Layer.
camera 1 layer
  • We'd like our Pie to take a picture when we tap the Shutter button. You do this in ProtoPie by stopping the camera.
stop camera layer
In the properties panel, choose Stop beside Action.
  • In order to update the preview on the Player on your phone, click the Run icon in Studio. This will reload the Pie on your device with your changes reflected.

You should now be able to switch between the front and rear cameras, and you should be able to take a picture.

That's it! your camera interaction is ready!

You now know how to build a prototype that uses your device's built-in camera using the Camera Layer object and the Camera Response, and you've learned how to run your brilliant work on your phone or tablet using the ProtoPie Player app. Well done!

If you're interested in improving the experience — right now our Pie only allows us to take a single picture, there's very little feedback, and switching between the front and rear cameras could behave a little nicer — you can watch this follow-up video which will build on what we just created and turn it into a very believable camera app demonstration.

learn how to create a simple camera app experience.
